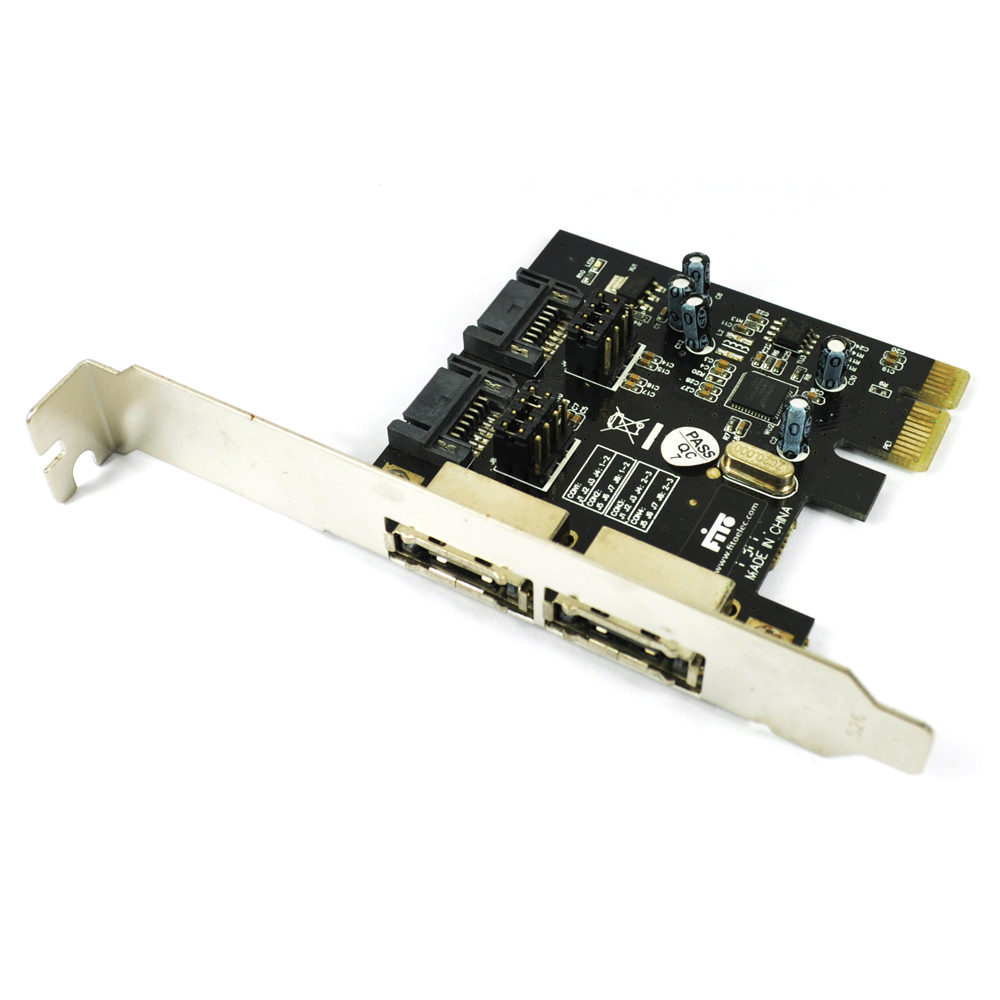

PCI Express SATA3.0 (eSATA+SATA)_ASM1061

ThePCI Express to Serial ATA III, enables Serial ATA PHY up to 6Gbps high speedinterface, following Serial ATA Revision 3.0 specification.

General Features:

Industry Specifications Compliance:
- PCI Express Base Specification Rev. 2.0
- Bus Master Programming Interface to IDE ATA Controller Rev. 1.0
- PCI Express Card Electromechanical Rev . 2.0
- Serial ATA AHCI Spec. Rev.1.3
- Serial ATA Revision 3.0

PCI Express Features
- x1 PCI Express lane for 2.5 and 5GHz signaling
- Single virtual channel
- SSC support
- ECRC and Advanced Error Reporting capability
- 100MHz differential PCI Express reference clock in
- Maximum Payload up to 128 bytes

Serial ATA Features
-Serial ATA PHY for 1.5, 3.0 and 6.0GHz signaling

-2 Ports working at the same time, 4 ports for switch.

-Support Native Command Queue
- Support Gen 1m and 2m SATA PHY
- Support Port Multiplier
