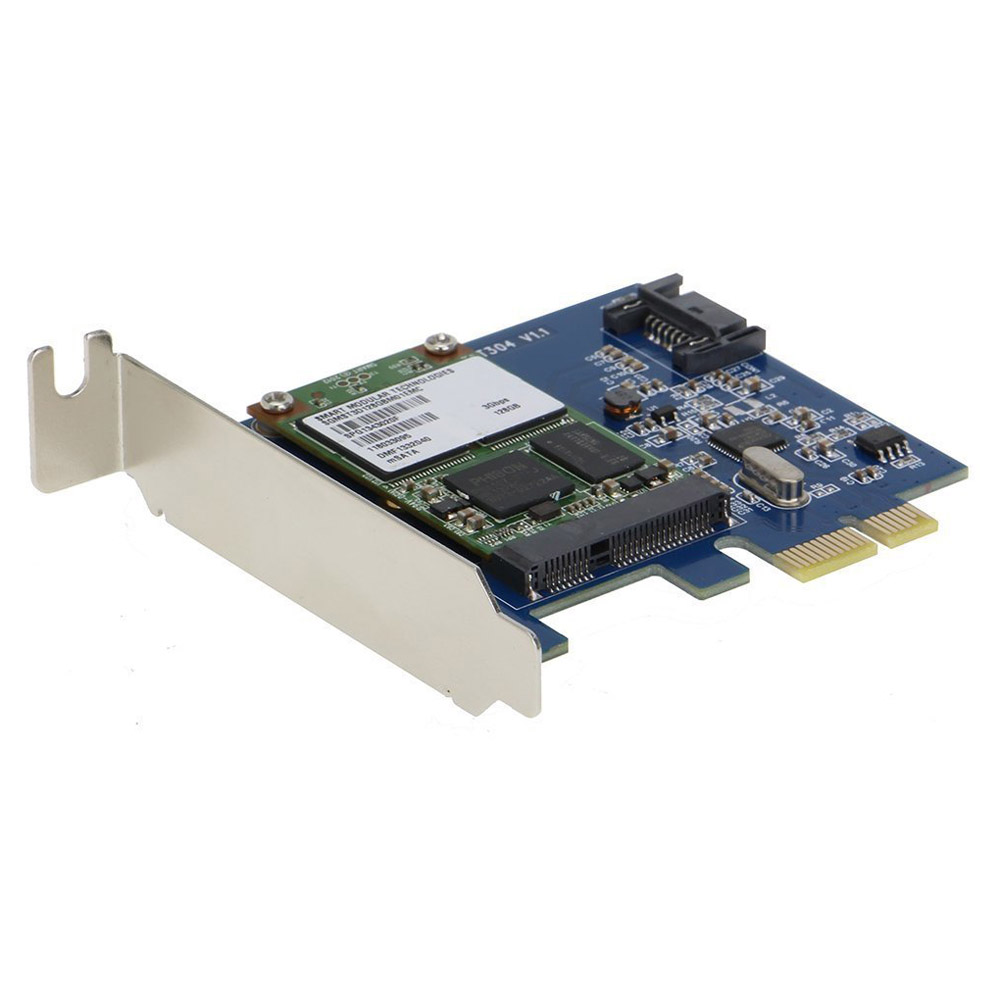

PCI-EXPRESS 1PORT SATA3.0 COMBO 1PORT mSATA3.0_ASM1061

Features :

SSD in Photo are for demo only and is notincluded
Direct mounting of 51×30mm mSATA III SSd onboard
One extra SATA III port for other devices
Operating System Software can be installed onmounted SSD and booting of the OS from the installed PCIE disk is supported (Your mother board BIOS need to support this feature )
Using standard low cost low capacity high perfermancemSATASSD instead of the much more expansive big capacity SSD

Specifications :

PCIE 1 Port mSATA III (6G) Port + 1 Port SATAIII (6G)
1 Port support direct installation of standardmSATA III SSD
1 extra internal SATA III port for intallationof extra Hdd / SSD
PCI Express Specification Rev. 2.0
1-Lane (x1) PCI-Express with transfer rate 5Gb/sFull Duplex channel
Compliant with Serial ATA 3.0 Specification,Datatransfer rate up to 6.0Gb/s
Backward compatible with SATA1.0/SATA2.0specification
Maximum capacity supported : 2T
Support NCQ
Driver supported Windows98SE /ME/ 2000/XP/Server2003/Vista/WIN7/Win8, Mac OS

System Requirement :

Available PCIE 2.0 1X,2X,4X,8X or 16X slot on PC
Supported OS

Package Content :

1 x PCIE mSATA III SSD adapter
1 x Driver CD
