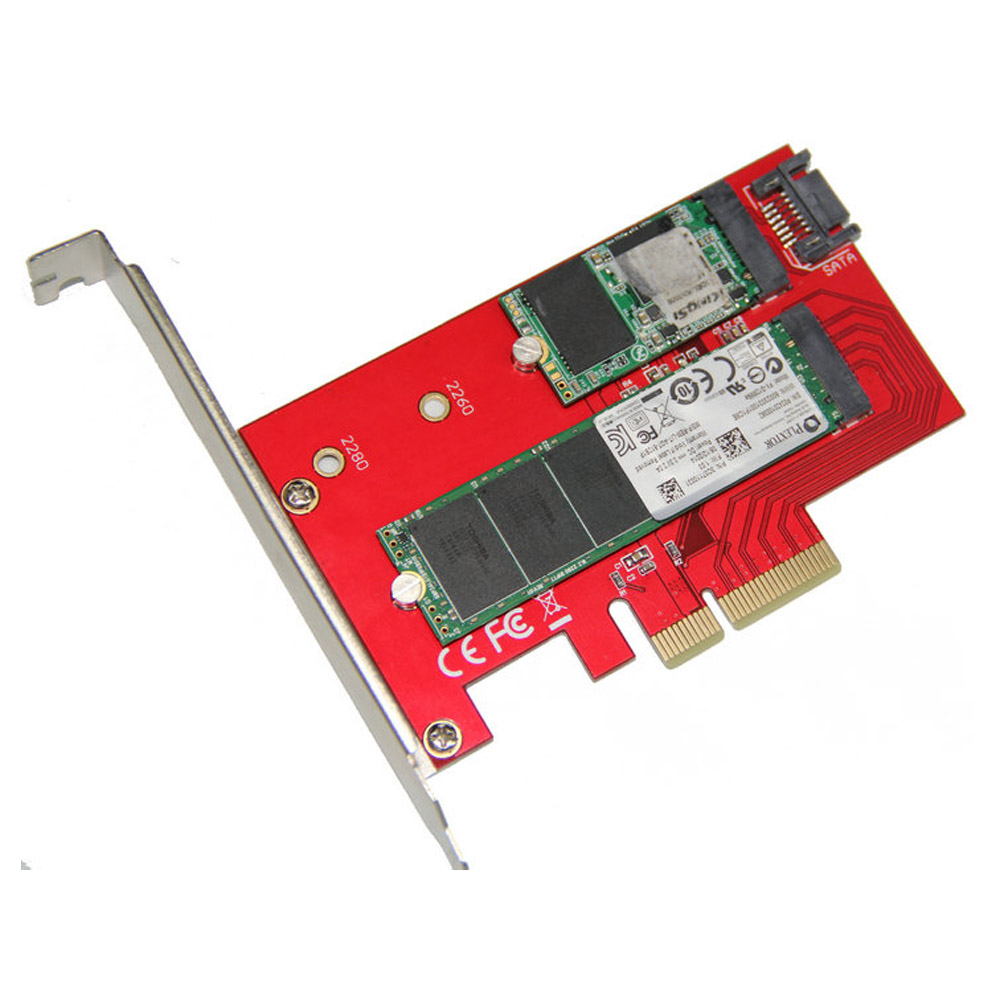

2 Port NGFF M.2 B + M Key to PCI-E 4X Adapter Card

Features and specifications :

Connects one B key & one M key NGFF SSD atthe same time to PCI-E 4X motherboard.
Compliant with PCI Express M.2 specification1.0.
Compliant with SATA 3.0 specification for B key.
Compliant with PCI-E 4X 3.0 specification for Mkey.
Supports data transfer up to 6.0Gb/s.
Supports SATA-based B key and PCI-E 4X-based Mkey NGFF SSD.
Supports 2230, 2242, 2260 & 2280 size NGFFSSD.
One NGFF B Key and one NGFF M key socketsavailable.
8 screw holes 2230/2242/2260/2280 available tofix NGFF SSD cards.
Easy installation & no driver required.
No additional power required.
Support boot function.
Supports any OS, like Windows, WinCE, Mac&Linux etc.

Remark : For B key SSD the SATA 7 pin connectormust be connected to motherboard.
Remark : For M key SSD there must be a 2.0 orhigher PCI-E 4X socket
Include Low profile bracket for installation inslim PC or server

Package Content :

1X 2 Port NGFF M.2 B + M Key to PCI-E 4X AdapterCard.
1 x SATA III cable
1 x Low profile bracket
